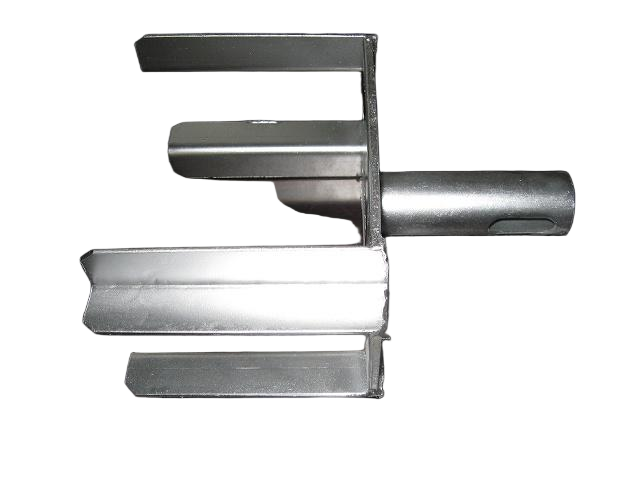

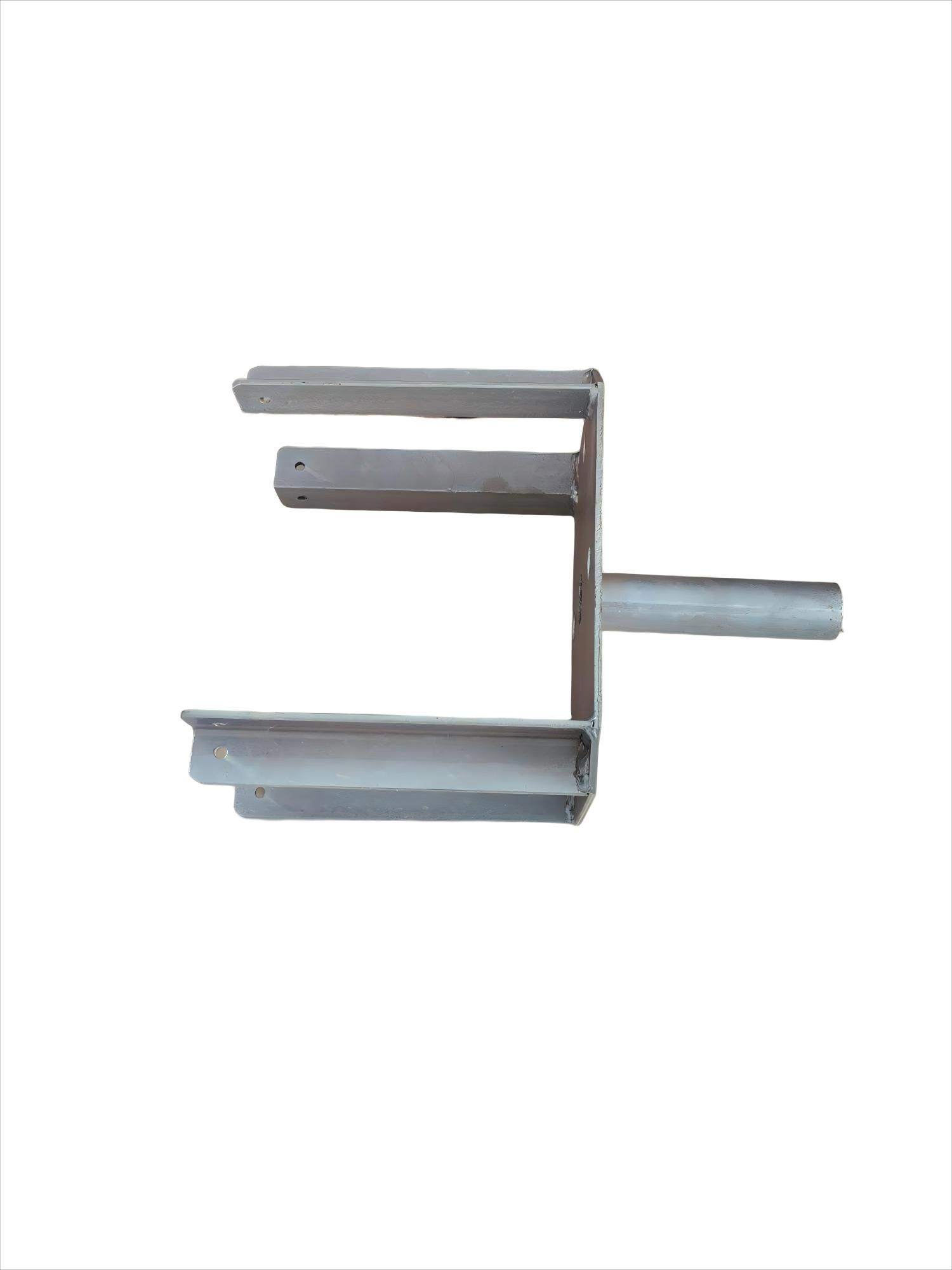

The Hyson Fork Head (Four-Way Head) is engineered specifically to secure primary beams in slab formwork systems. Unlike standard U-Heads, the Fork Head features a four-prong design that accommodates single or double H20 timber beams (or steel profiles), locking them firmly in position to prevent tipping or twisting under load.
Manufactured in our Nantong base using high-strength Q235 steel, these heads are capable of transferring heavy vertical loads from the slab directly to the props. Whether you are constructing a commercial high-rise or a civil infrastructure project, Hyson Fork Heads provide the critical connection that keeps your formwork deck safe and level.
Key Features
1. Optimized "Anti-Rotation" Design
The 4-way angle iron or steel sheet design creates a snug fit for standard H20 beams. This restrictive geometry prevents the beams from rotating or sliding laterally during the concrete pouring process.
2. 90° Rotatable Versatility
The head allows beams to be placed in either direction (holding a single beam one way, or overlapping beams the other way), making it versatile for complex grid layouts.
3. Heavy-Duty Welding Strength
Safety is non-negotiable. We utilize CO2 protection welding for the connection between the fork head and the stem/socket. This ensures deep penetration and high shear resistance.
4. Long-Lasting Surface Protection
Available in Hot-Dip Galvanized (HDG) or Yellow Zinc Plated finishes. Our rigorous anti-corrosion treatment ensures the product remains rust-free and functional for years, maximizing ROI for rental fleets.
Technical Specifications
| |
| |
| |
| Adjustable (With Screw Stem) / Fixed (Spigot Type) |
| 34mm / 38mm / 48mm (Fits Props & Scaffolding) |

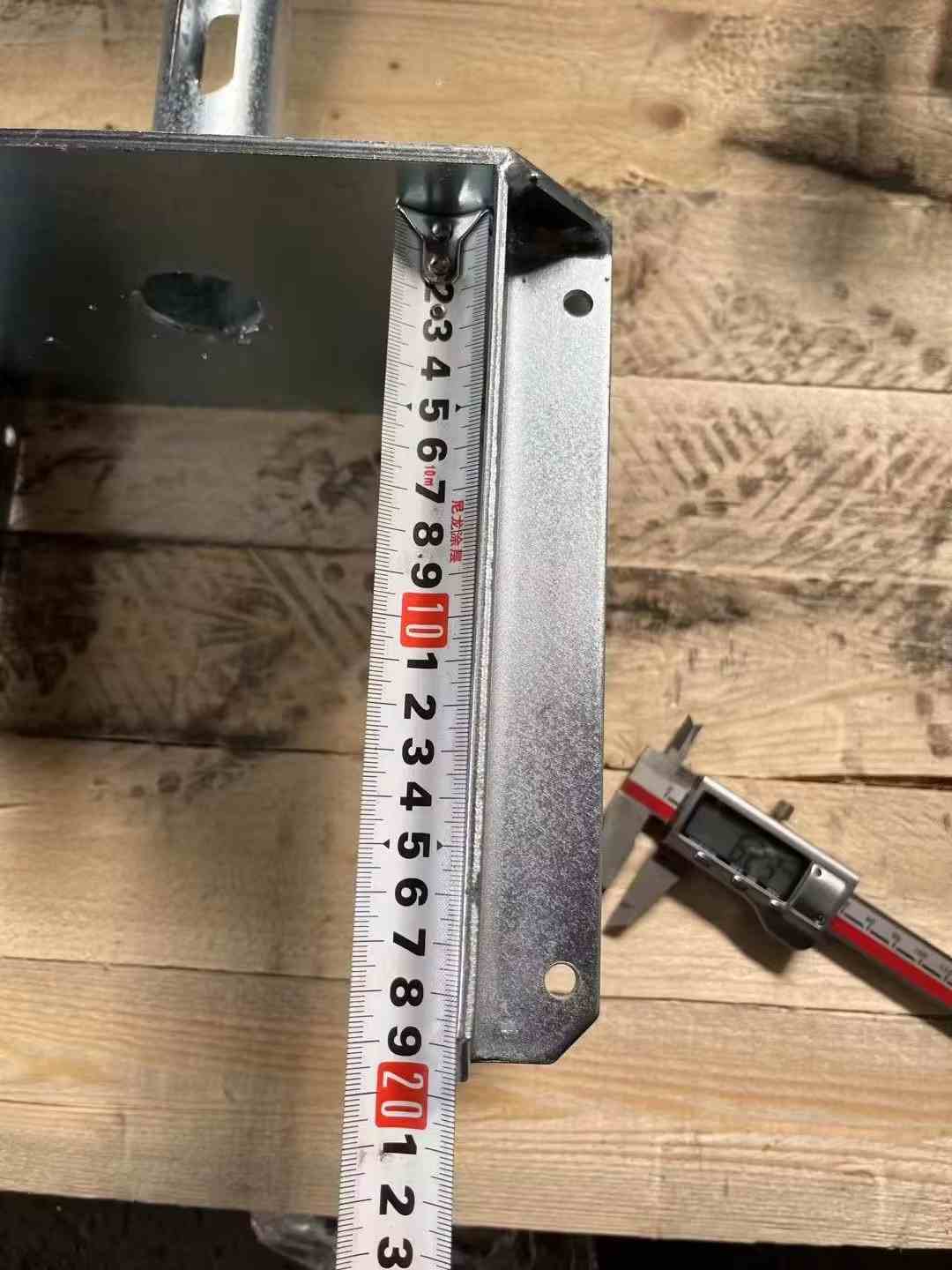

| 220mm x 115mm (Standard for H20) or Custom |
| 85mm / 170mm (Depends on single/double beam req.) |
| Electro-Galvanized / Hot-Dip Galvanized / Painted |
| Tested to match Prop/System capacity (e.g., 40kN) |
Application Scenarios
- H20 Timber Beam Systems: The primary application, holding the main bearers securely.
- Table Formwork: Used as the connection point between the prop and the table grid.
- Double-Channel Steel Beams: The fork spacing can be customized to fit steel twin-channel walers.
Why Partner with Hyson?
- Factory Direct: 20,000 sqm production base in Nantong reduces intermediaries.
- Proven Track Record: Trusted supplier for major infrastructure projects globally (CCCC qualified).
- Customization: We can adjust the fork width, height, and angle based on your beam specifications.
